EJ JK BT Active Balancer Equalizer For BMS VRLA Battery 1A 2A Balance Current

Product Categories

Guangdong Yijia Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Suitable for : 2V VRLA battery cells series to be 1000V

Model Number : EJAB-JK-B1A24S

Balance current : 1.0A or 2.0A for optional

MOQ : 1

Brand Name : EJ

Place of Origin : Guangdong, China

Product name : B1A24S ACTIVE equalizer

Apply : VRLA battery energy storage, 2V VRLA battery

Contact Now

Product Description

Product model	JK-B2A24S

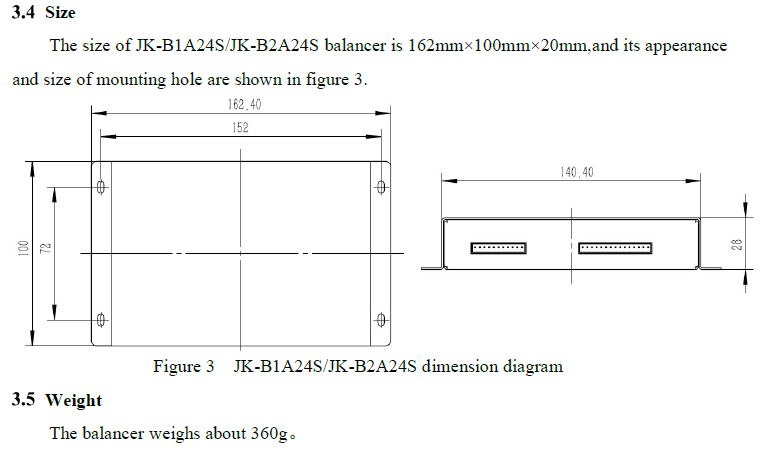

Dimensions	162x100x20MM
Active balancing current	0.1~2A adjustment
Cell voltage range	1V~5V±5MV
Cell voltage difference after balancing	≤5MV
Power supply range	40V~100V
Operating temperature	-30℃~90℃
Balancing method	Energy transfer active balancing technology
Balancing start condition	Balancing starts automatically when the voltage difference exceeds the trigger value (settable), and starts automatically when it is >10MV by default
Applicable battery string number	2~24 battery packs
Applicable battery types	Support all types of batteries such as Li-ion, iron lithium, lead acid, LTO, super capacitors, etc.
Balancing cascade	Support, applicable to battery packs with more than 24 strings, theoretically unlimited cascading
Bluetooth communication function	Standard Bluetooth communication, optional 485, CAN
Power consumption	Balancing state 10MA@100V, non-balanced state 6MA@100V
